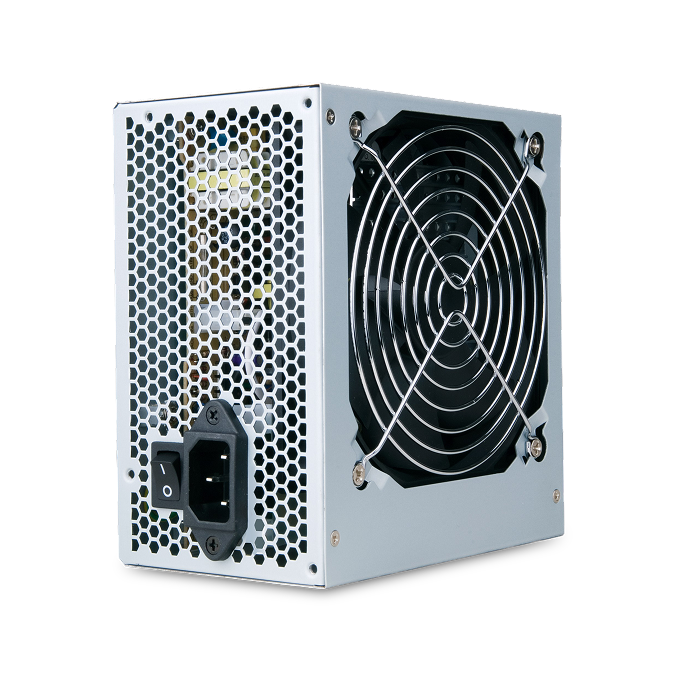

STANDARD POWER SUPPLY

Next-Gen Compatibility

Supports Intel® Multi-Core / Quad-Core / i7™ and AMD Dual-Core CPUs, plus NVIDIA® & AMD/ATI® VGA cards

Wide Power Output Range

Available from 200W to 1200W, offering flexibility for any system build

Custom Fan Options

Choose from 8cm, 12cm, or 14cm fans with low-noise performance and colorful blade options: White/Red/Black/Transparent

Independent 12V Rails

Meets UL 240VA safety standards for enhanced stability and load handling

SATA Power Support

Optimized for Serial ATA drives, ensuring fast, stable connections.

High Reliability Protection

Built-in OCP, UVP, OVP, OLP, OPP, and SCP safeguard your system from electrical faults

Optional PFC (Power Factor Correction)

Available with Passive or Active PFC for improved power efficiency and distribution

EMC & Safety
Certified

Advanced electromagnetic filtering to minimize radiation and interference

Model Selection.

Model/DC output

+3.3V

+5V

+12V

-12V

+5VSB

Total power

Rating

PSU 200W

7A

8A

11A

0.5A

1.8A

200W

PSU 230W

7A

8A

13A

0.5A

2A

230W

PSU 250W

8A

9A

14A

0.5A

2A

250W

PSU 300W

10A

10A

17A

0.5A

2A

300W

PSU 350W

10A

10A

21A

0.5A

2A

350W

PSU 400W

10A

11A

25A

0.5A

2A

400W

PSU 450W

10A

11A

29A

0.5A

2A

450W

PSU 500W

11A

11A

33A

0.2A

2A

500W

PSU 550W

11A

11A

37A

0.5A

2A

550W

PSU 600W

11A

12A

41A

0.5A

2A

600W

PSU 650W

11A

12A

45A

0.5A

2A

650W

PSU 700W

12A

12A

49A

0.5A

2A

700W

Model Selection.

Model/DC output

PSU 200W

+3.3V

7A

+5V

8A

+12V

11A

-12V

0.5A

+5VSB

1.8A

Total power

200W

Rating

Model/DC output

PSU 230W

+3.3V

7A

+5V

8A

+12V

13A

-12V

0.5A

+5VSB

2A

Total power

230W

Rating

Model/DC output

PSU 250W

+3.3V

8A

+5V

9A

+12V

14A

-12V

0.5A

+5VSB

2A

Total power

250W

Rating

Model/DC output

PSU 300W

+3.3V

10A

+5V

10A

+12V

17A

-12V

0.5A

+5VSB

2A

Total power

300W

Rating

Model/DC output

PSU 350W

+3.3V

10A

+5V

10A

+12V

21A

-12V

0.5A

+5VSB

2A

Total power

350W

Rating

Model/DC output

FP-750W

+3.3V

10A

+5V

11A

+12V

25A

-12V

0.5A

+5VSB

2A

Total power

400W

Rating

Model/DC output

PSU 450W

+3.3V

10A

+5V

11A

+12V

29A

-12V

0.5A

+5VSB

2A

Total power

450W

Rating

Model/DC output

PSU 500W

+3.3V

11A

+5V

11A

+12V

33A

-12V

0.2A

+5VSB

2A

Total power

500W

Rating

Model/DC output

PSU 550W

+3.3V

11A

+5V

11A

+12V

37A

-12V

0.5A

+5VSB

2A

Total power

550W

Rating

Model/DC output

PSU 600W

+3.3V

11A

+5V

12A

+12V

41A

-12V

0.5A

+5VSB

2A

Total power

600W

Rating

Model/DC output

PSU 650W

+3.3V

11A

+5V

12A

+12V

45A

-12V

0.5A

+5VSB

2A

Total power

650W

Rating

Model/DC output

PSU 700W

+3.3V

12A

+5V

12A

+12V

49A

-12V

0.5A

+5VSB

2A

Total power

700W

Rating

CABLES.
