LUXEN

Panoramic Design. Built to Perform

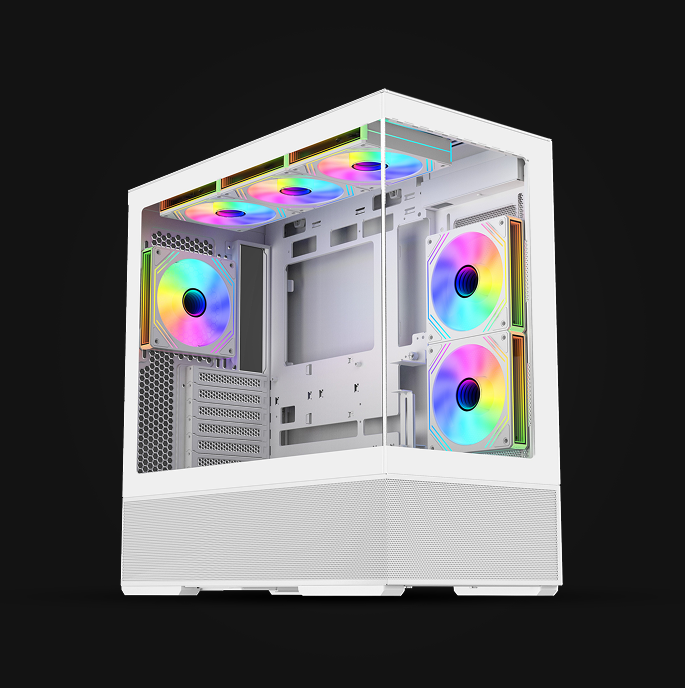

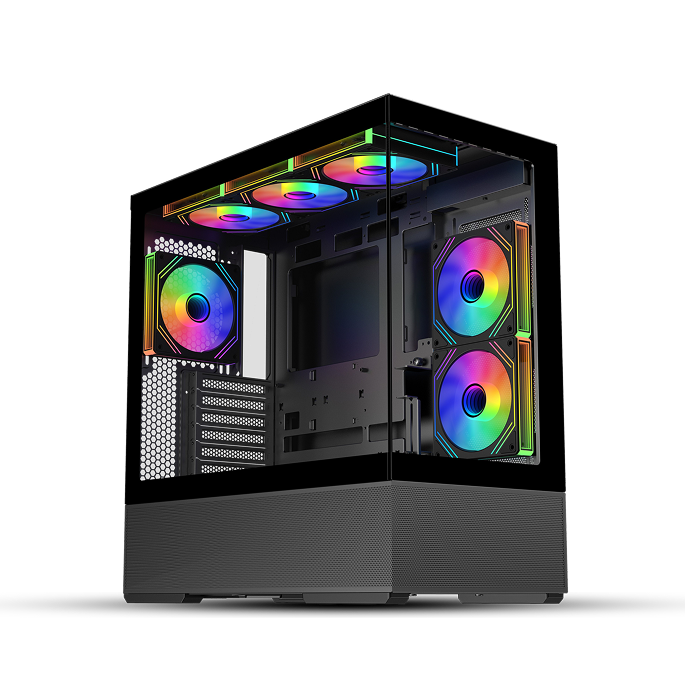

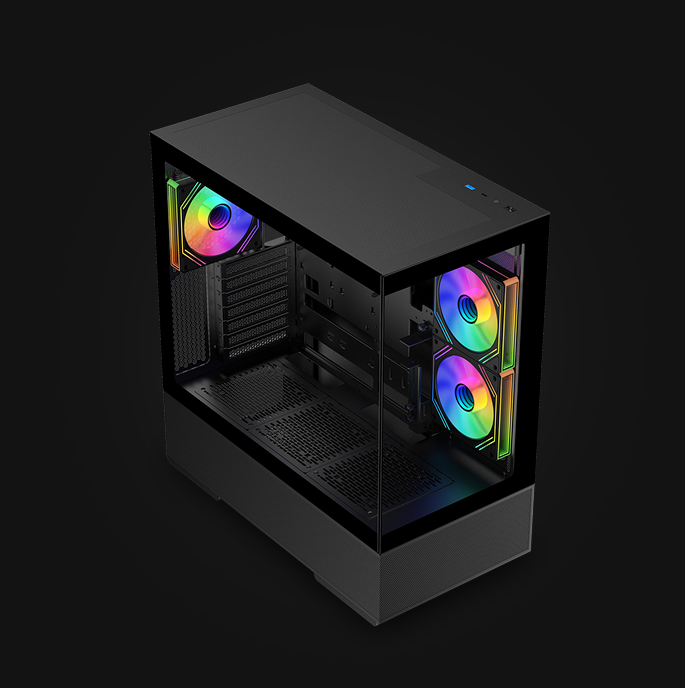

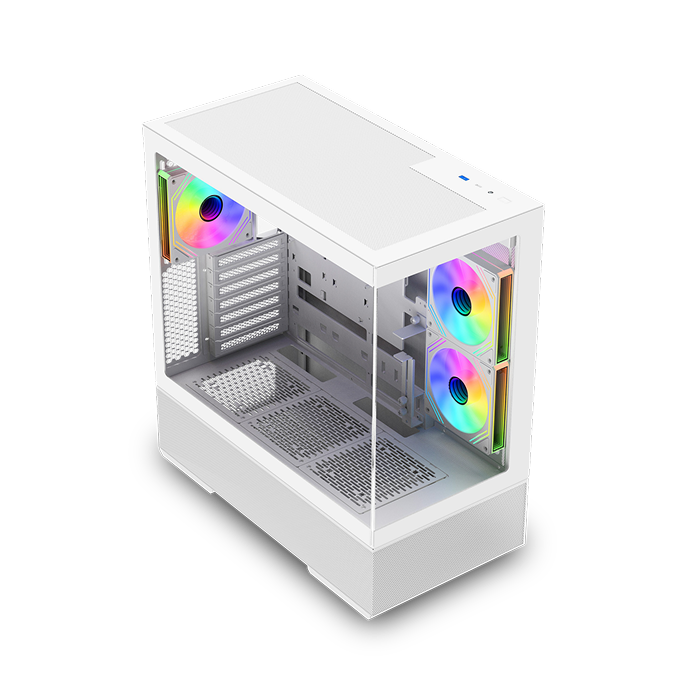

LUXEN redefines the gaming case with a sweeping 270° full-glass view and clean structural lines. Engineered for high-performance setups, it delivers both airflow and aesthetics in one bold frame.

PREMIUM.

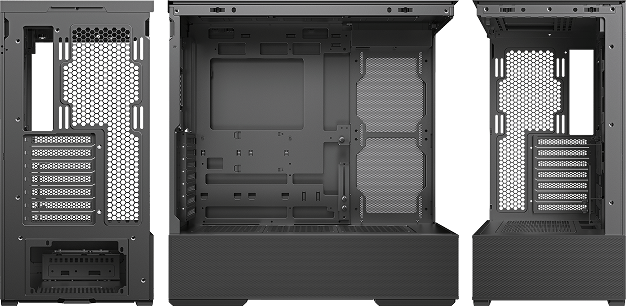

Structural Precision

Clean angles and robust construction for
a modern, minimalist look.

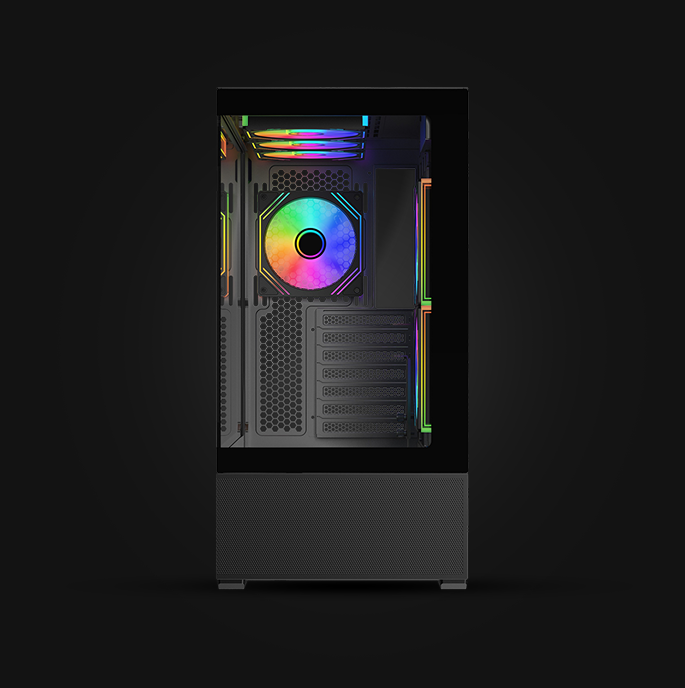

Immersive Showcase

Dual tempered glass panels offer a stunning panoramic hardware view.

PERFORMANCE.

Maximized Airflow

Supports up to 9 fans or a 360mm
liquid cooling system.

Ventilated Foundation

Full-length bottom mesh maximizes intake and thermal efficiency.


Built-In GPU Support

Reinforced bracket ensures long graphics cards stay secure and stable.

EASY.

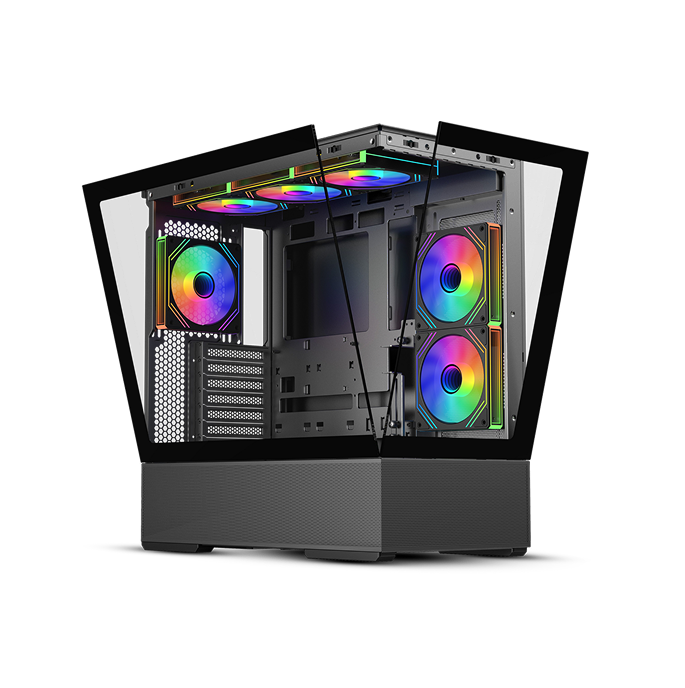

Tool-Free Assembly

Quick-release side panels and top cover for fast, screwless access.

BTF-Ready

Fully compatible with back-connector (BTF) motherboards for clean cable routing.

Built to the Highest Standards.

See exactly what makes this case a top-tier performer.

Type

ATX Case

structured dimensions

440x235x355mm

case dimensions

445x235x470mm

drive bays
3.5”
2.5”


1
2

motherboard

ATX / MICRO ATX

power supply

ATX PS/2, Bottom Mount

expansion slots

7 Slots

FAN capacity
side
top
rear
psu shroud


2x120mm or 140mm
3x120mm or 2x140mm
1x120mm or 1x140mm
3x120mm

side radiator support

240mm

top radiator support

240mm, 280mm, 360mm

max cpu cooler height

190mm

max graphics card length

400mm
