FUSION FAN SERIES

Simplify. Synchronize. Shine.

The FUSION FAN SERIES integrates advanced lighting and simplified installation into a unified design, delivering both performance and visual impact.

DOWNLOAD specifications

Integrated Fan Structure

Simplifies installation and cable management

Infinity Mirror Lighting

Creates stunning visuals from every angle

Multiple Blade Options

Available in standard and reverse blade versions

ARGB Synchronization

Enables full customization via motherboard control

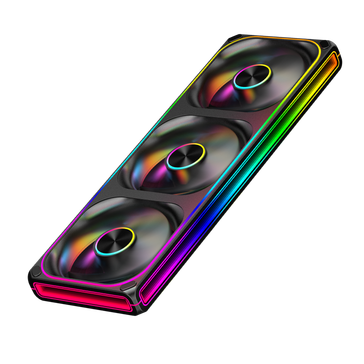

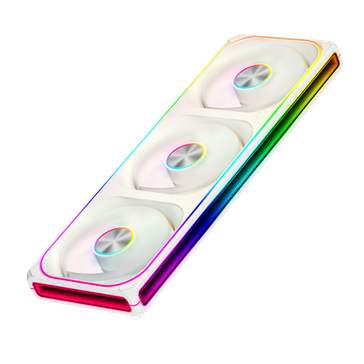

SOLARIS 360

dimensions

362x123x28mm

bearing time

Hydraulic Bearing

fan speed

700-2400 RPM ± 10%

airflow

21.5-62.4 CFM

Air pressure

0.49-2.46 mmH2O ± 10%

noise level

21.3-37.3 dBA

RATED VOLTAGE (FAN)

DC 12V

RATED CURRENT (FAN)

0.61A

RATED VOLTAGE (LED)

DC 5V

RATED CURRENT (LED)

1.35A

POWER CONSUMPTION

14.1W

FAN CONNECTOR

4-pin PWM

RGB CONNECTOR

5V 3-pin ARGB

LIFE

20000 Hrs

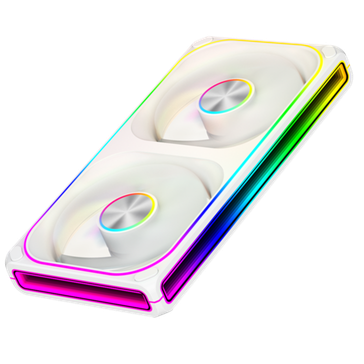

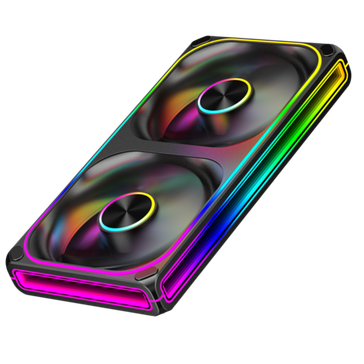

SOLARIS 240

dimensions

242x123x28mm

bearing time

Hydraulic Bearing

fan speed

700-2400 RPM ± 10%

airflow

21.5-62.4 CFM

Air pressure

0.49-2.46 mmH2O ± 10%

noise level

21.3-37.3 dBA

RATED VOLTAGE (FAN)

DC 12V

RATED CURRENT (FAN)

0.43A

RATED VOLTAGE (LED)

DC 5V

RATED CURRENT (LED)

1.16A

POWER CONSUMPTION

11W

FAN CONNECTOR

4-pin PWM

RGB CONNECTOR

5V 3-pin ARGB

LIFE

20000 Hrs

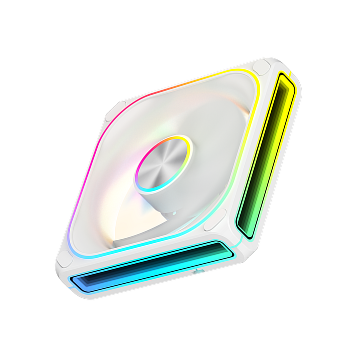

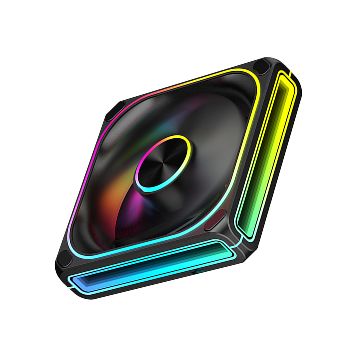

SOLARIS 120

dimensions

120x120x28mm

bearing time

Hydraulic Bearing

fan speed

700-2400 RPM ± 10%

airflow

21.5-62.4 CFM

Air pressure

0.49-2.46 mmH2O ± 10%

noise level

21.3-37.3 dBA

RATED VOLTAGE (FAN)

DC 12V

RATED CURRENT (FAN)

0.22A

RATED VOLTAGE (LED)

DC 5V

RATED CURRENT (LED)

0.71A

POWER CONSUMPTION

6.2W

FAN CONNECTOR

4-pin PWM

RGB CONNECTOR

5V 3-pin ARGB

LIFE

20000 Hrs
