ACKERMAN

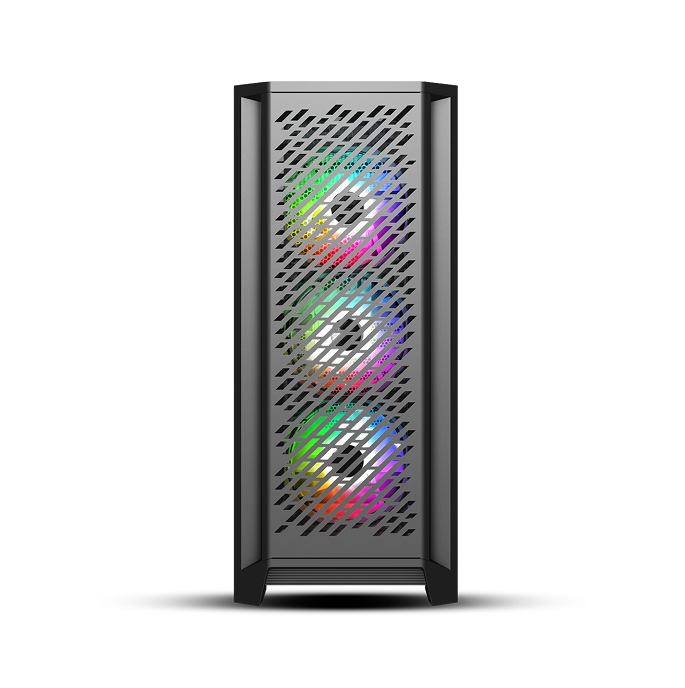

Meteor-Inspired Mesh Front Panel

Elegant full-metal front panel features a unique meteor-style mesh design for standout aesthetics and airflow.

Swing-Open Glass Side Panel

Tempered glass side panel opens easily for tool-free access and smooth hardware installation.

Side Ventilation Channels

Unblocked straight-cut holes on both sides enhance overall cooling performance.

Vertical GPU Support

Two vertical PCI slots allow for eye-catching vertical graphics card mounting.

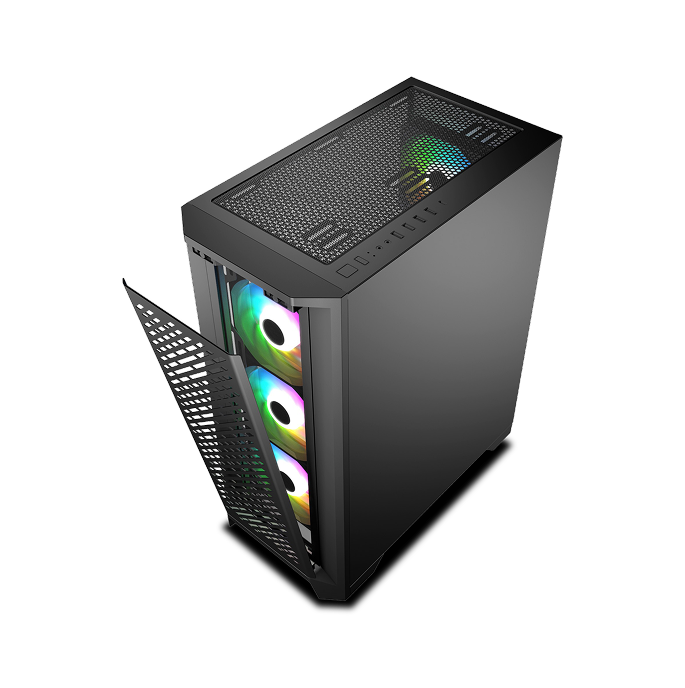

Removable Front Panel & Dust Filter

Detachable metal front and included anti-dust filter make cleaning and maintenance simple.

SuperSpeed+ USB-C Port

Equipped with USB 3.2 Type-C for high-speed, reliable data transfer and device connectivity.

Built to the Highest Standards.

See exactly what makes this case a top-tier performer.

Type

ATX Case

structured dimensions

350x210x465mm

case dimensions

385x210x485mm

drive bays
5.25"
3.5”
2.5”


0
2
2

motherboard

ATX / MICRO ATX

BOTTOM-MOUNTED PSU

ATX PS/2

expansion slots

7 slots +2 Vertical Slots

Fan Capacity
front
REAR
top


3x120mm or 3x140mm
1x120mm
2x120mm or 2x140mm

radiator support
FRONT
TOP


240mm, 280mm, 360mm
240mm, 280mm

max cpu cooler height

165mm

max graphics card length

320mm

Type

ATX Case

structured dimensions

420x210x465mm

case dimensions

455x210x485mm

drive bays
5.25"
3.5”
2.5”


0
2
2

motherboard

ATX / MICRO ATX

BOTTOM-MOUNTED PSU

ATX PS/2

expansion slots

7 slots +2 Vertical Slots

Fan Capacity
front
REAR
top
side


3x120mm or 3x140mm
1x120mm
3x120mm or 2x140mm
3x120mm

radiator support
FRONT
TOP


240mm, 280mm, 360mm
240mm, 280mm, 360mm

max cpu cooler height

165mm

max graphics card length

390mm
