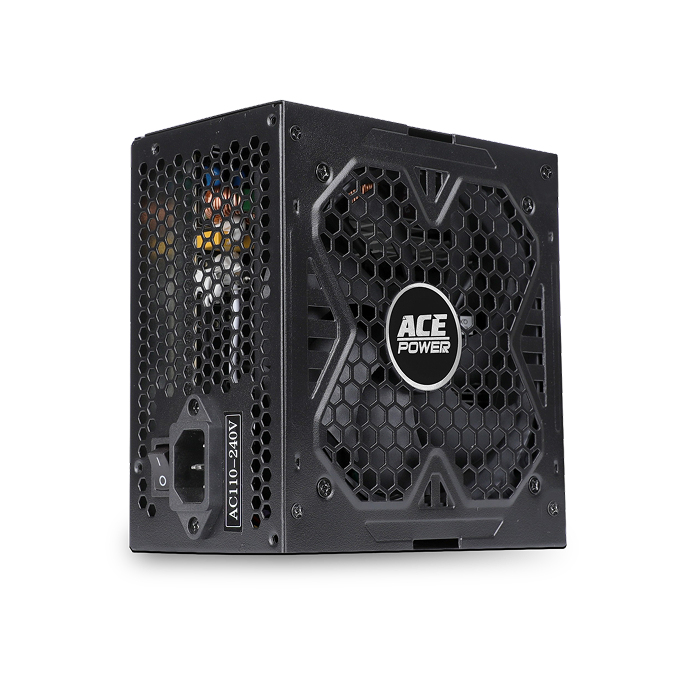

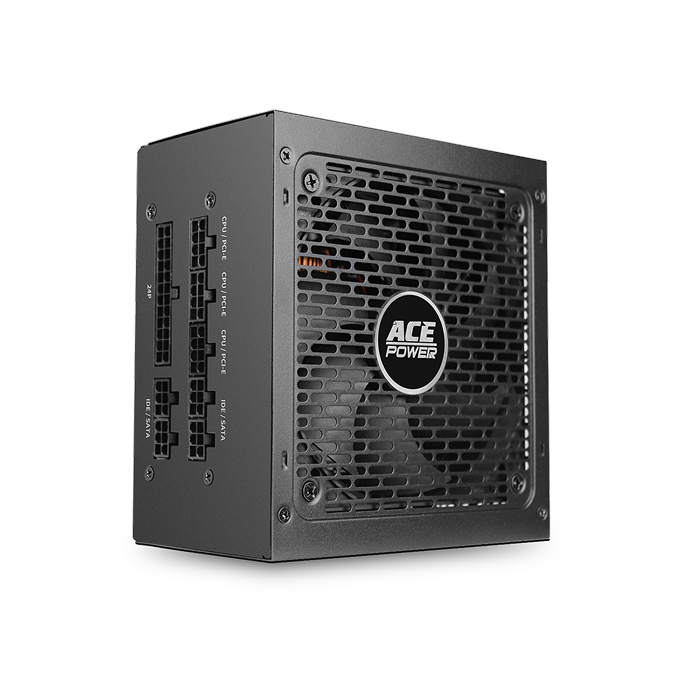

ACE POWER ATX 3.1 Series

DOWNLOAD specifications

ATX 3.1 & PCIe 5.0 Ready

Supports up to 2x total power excursion and 3x GPU power excursion, meeting Intel® PSDG and PCIe 5.0 standards.

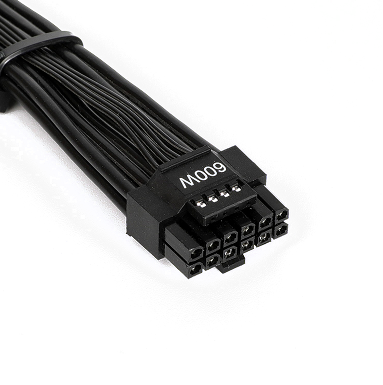

Native 16-Pin PCIe Connector

Delivers up to 600W to power nVIDIA® GeForce RTX® 40 Series GPUs with ease.

80 PLUS® Certified

Available in GOLD, SILVER, and BRONZE — for high efficiency and reduced power consumption.

Model/DC output

+3.3V

+5V

+12V

-12V

+5VSB

Total power

Rating

AP-850G

10A

83W

10A

83W

62.7A

752W

0.3A

3.6W

2.5A

12.5W

850W

AP-1000G

10A

83W

10A

83W

75.2A

902W

0.3A

3.6W

2.5A

12.5W

1000W

AP-1200G

10A

83W

10A

83W

92A

1104W

0.3A

3.6W

2.5A

12.5W

1200W

specifications.

Model/DC output

AP-850G

+3.3V

10A

83W

+5V

10A

83W

+12V

62.7A

752W

-12V

0.3A

3.6W

+5VSB

2.5A

12.5W

Total power

850W

Rating

Model/DC output

AP-850G

+3.3V

10A

83W

+5V

10A

83W

+12V

75.2A

902W

-12V

0.3A

3.6W

+5VSB

2.5A

12.5W

Total power

1000W

Rating

Model/DC output

AP-850G

+3.3V

10A

83W

+5V

10A

83W

+12V

92A

1104W

-12V

0.3A

3.6W

+5VSB

2.5A

12.5W

Total power

1200W

Rating

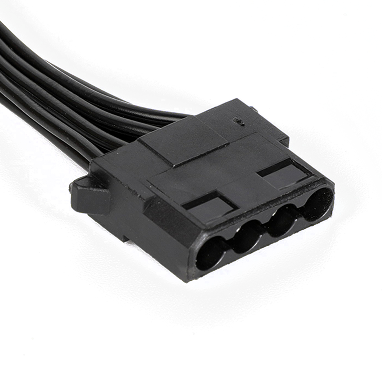

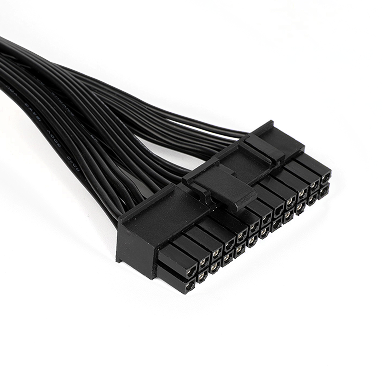

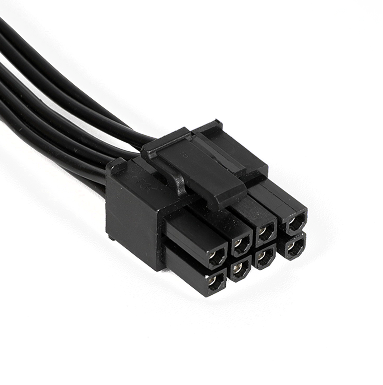

CABLES.
