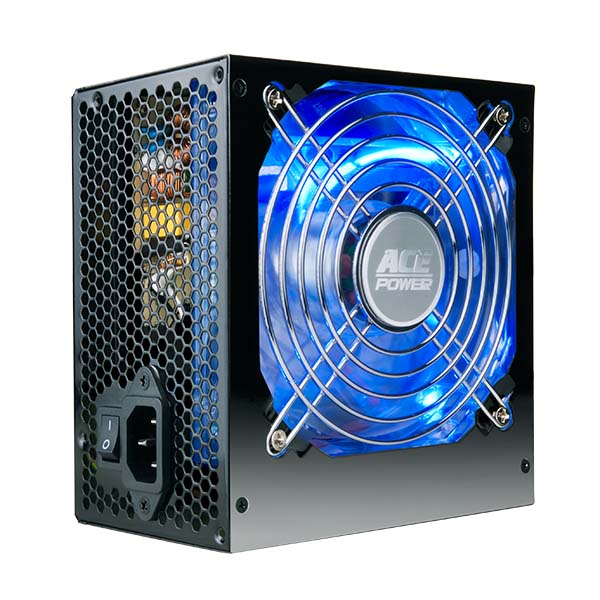

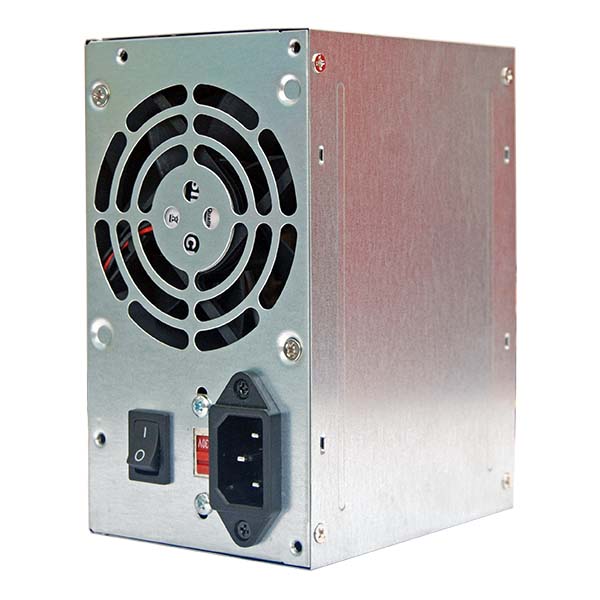

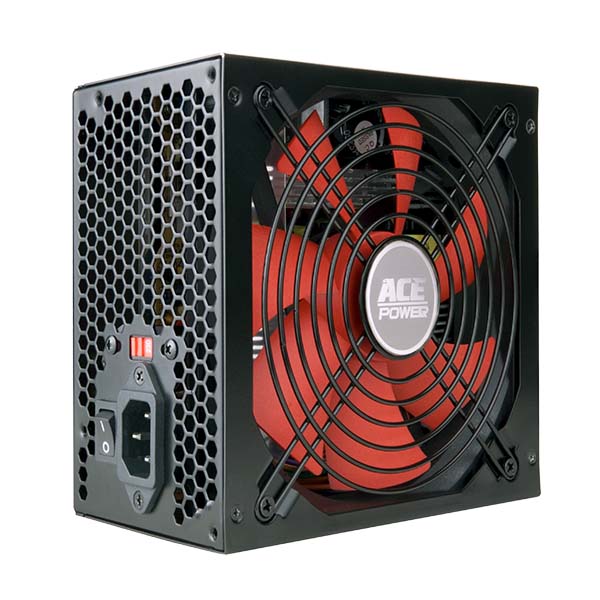

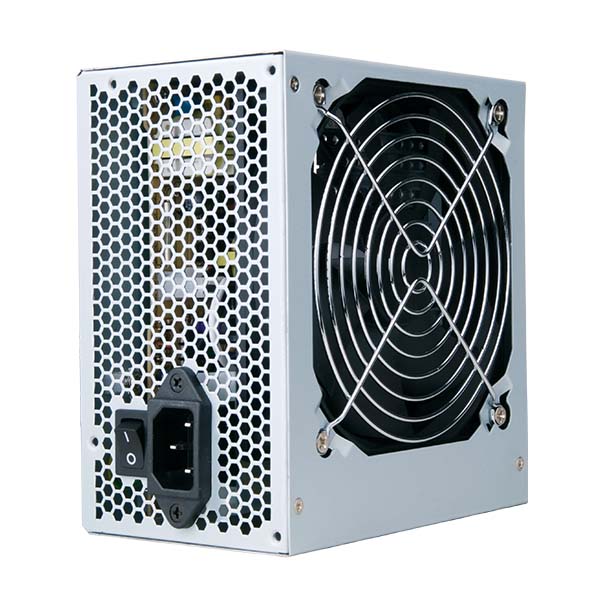

ATX Power Supply

GENERAL

  • black
  • silver

Feature

  • Power Output Covers Full Range
    Provide output option from 200W to 700W
  • Optional Power Factor Correction
    PFC and APFC are available for reducing electrical waste
  • Fully Protection
    OCP / OLP / OPP / OTP / OVP / SCP / UVP
  • Appearance and Fan Options
    Provide 8cm / 12cm / 14cm and different colors of fan

Specification

MODEL \ DC OUTPUT AC INPUT 100-240V, 6-10A, 47-63Hz
+12V1 +12V2 +5V +3.3V -12V +5VSB RATED
POWER
PSU 200W 11A / 8A 7A 0.5A 1.8A 200W
132W 63W 6W 9W
PSU 230W 13A / 8A 7A 0.5A 2A 230W
156W 63W 6W 10W
PSU 250W 14A / 9A 8A 0.5A 2A 250W
168W 71W 6W 10W
PSU 300W 17A / 10A 10A 0.5A 2A 300W
204W 83W 6W 10W
PSU 350W 10A 11A 10A 10A 0.5A 2A 350W
252W 83W 6W 10W
PSU 400W 12A 13A 11A 10A 0.5A 2A 400W
300W 88W 6W 10W
PSU 450W 14A 15A 11A 10A 0.5A 2A 450W
348W 88W 6W 10W
MODEL \ DC OUTPUT AC INPUT 100-240V, 6-10A, 47-63Hz
+12V1 - 12V3 +5V +3.3V -12V +5VSB RATED
POWER
PSU 500W 33A 11A 11A 0.5A 2A 500W
396W 91W 6W 10W
PSU 550W 37A 11A 11A 0.5A 2A 550W
444W 91W 6W 10W
PSU 600W 41A 12A 11A 0.5A 2A 600W
492W 96W 6W 10W
PSU 650W 45A 12A 11A 0.5A 2A 650W
540W 96W 6W 10W
PSU 700W 49A 12A 12A 0.5A 2A 700W
588W 100W 6W 10W

Cable

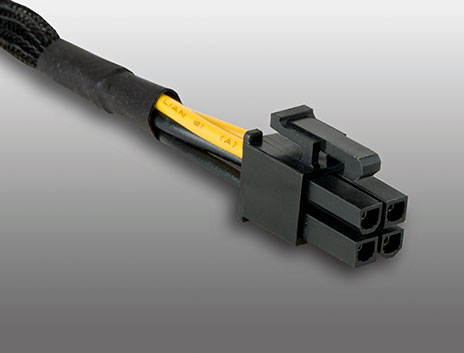

CPU-4pin

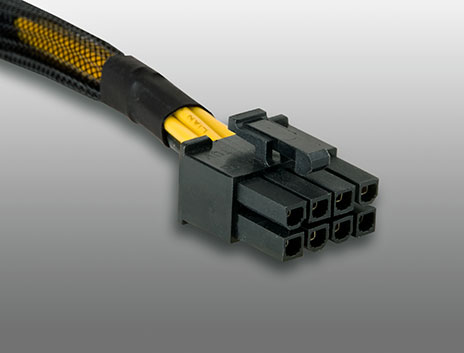

EPS-8pin
Floppy-4pin
MB-20+4pin
PCi-E-6+2pin

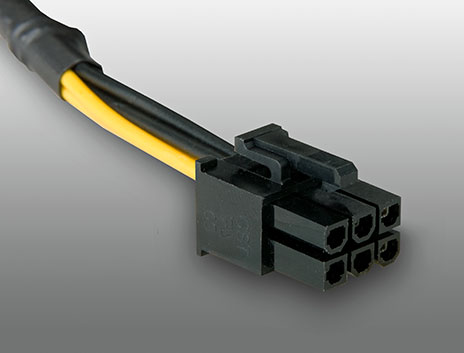

PCI-E-6pin

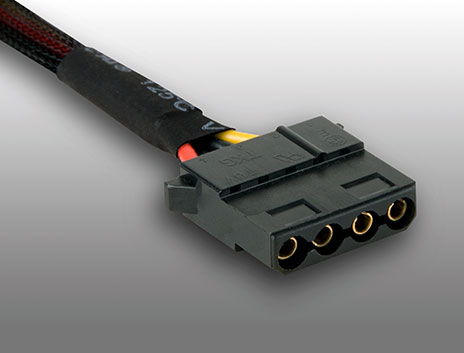

Peripheral-4pin

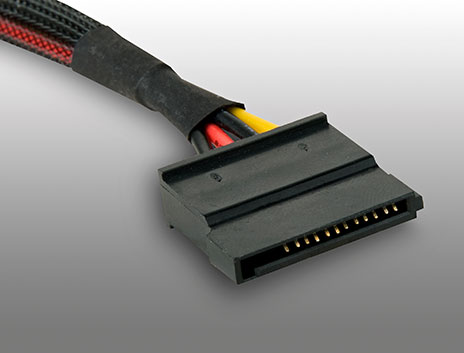

SATA

Safety certification

safety
