ECO Series

ECO series

ECO Series is with Two Appearance, Single Ring and Double Rings, Three Different Lighting Types.

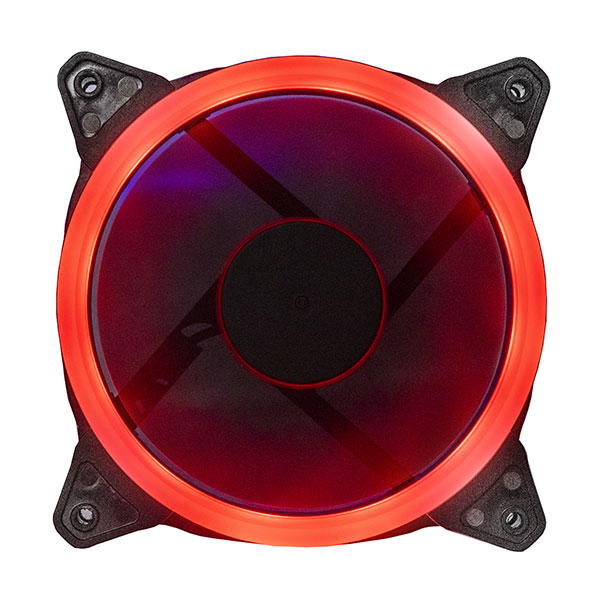

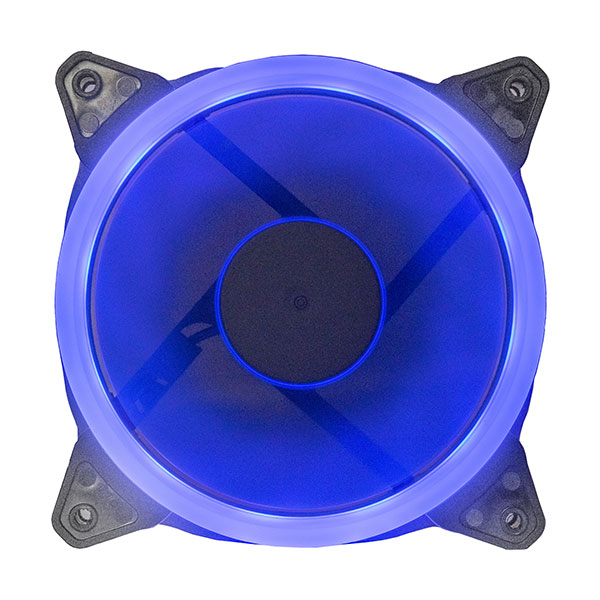

Single Color Type
Including any color like Red, Blue, Green, White and etc.

Multiple Colors Type
Including Fixed 5 Colors, Auto-change, and also the controller is available. With the controller, you can change the color whatever you want.

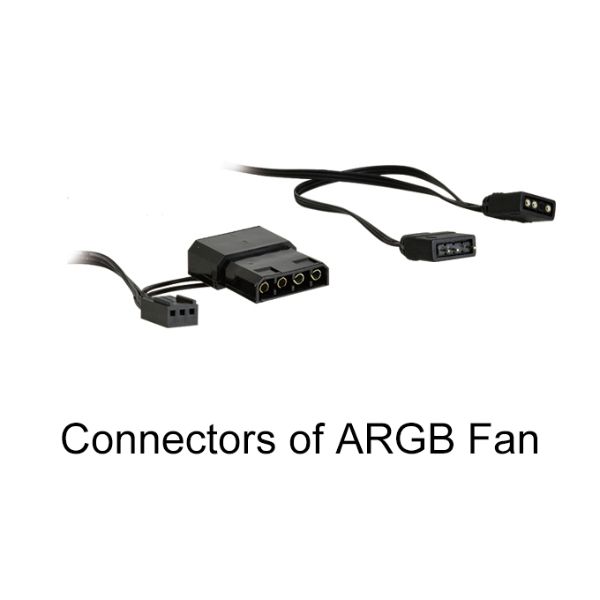

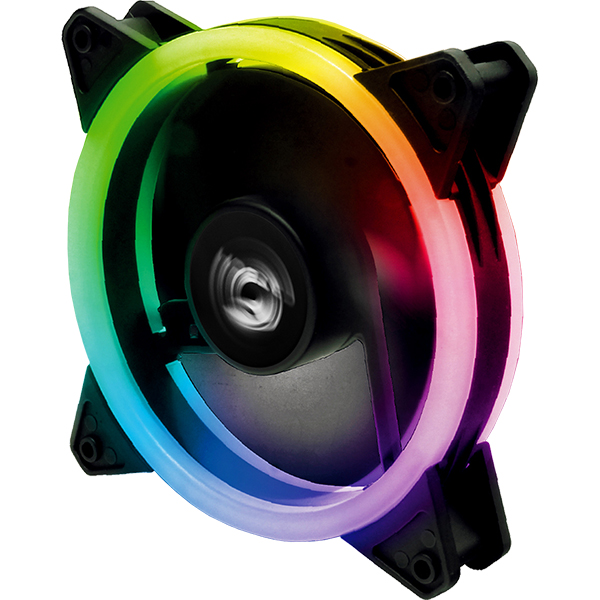

ARGB SYNC Type
Compatible with ASUS, Gigabytes, MSI, and ASRock motherboard Addressable RGB function.

  • rgb
  • red
  • blue

Feature

  • Efficient
  • Reliable
  • Low Noise
  • High Airflow

Specification

256C FAN

DIMENSION 120*120*25mm
LED QUANTITY 12 pcs
OPERATING VOLATGE DC 5.0-13.8V
INPUT WATTAGE 3.68W
RATED CURRENT 500mA (LED), 160mA (FAN)
AIR PRESSURE 1.3mm-H2O
AIR FLOW 28.34 CFM
FAN SPEED 1200 RPM ± 10%
NOISE LEVEL 23.2 dBA
BEARING TYPE Hydraulic Bearing
LIFE 40000 Hrs

RGB FAN

DIMENSION 120*120*25mm
LED QUANTITY 15 pcs
OPERATING VOLATGE DC 5.0-13.8V
INPUT WATTAGE 4.42W
RATED CURRENT 450mA
AIR PRESSURE 1.3mm-H2O
AIR FLOW 28.34 CFM
FAN SPEED 1200 RPM ± 10%
NOISE LEVEL 23.2 dBA
BEARING TYPE Hydraulic Bearing
LIFE 40000 Hrs
