F93A
F SERIES
Feature
- Simple and Elegant Design
- Aluminum Alike Surface Presents High Quality
- Metal Mesh on Two Sides of Front Panel for Ventilation

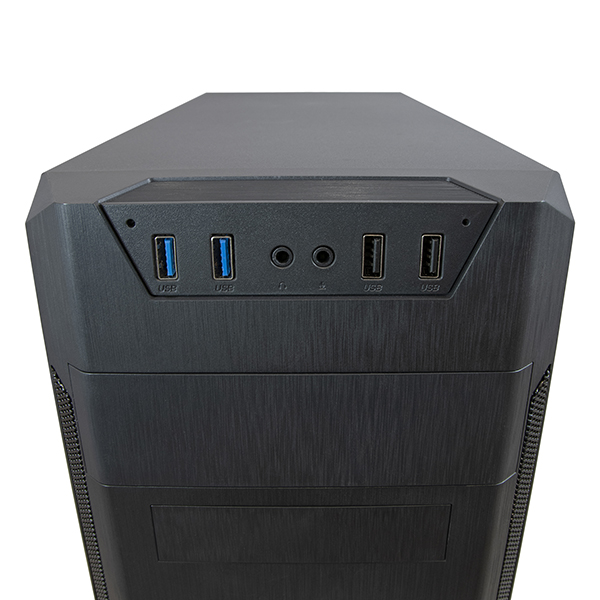

- USB Control Panel on Top for User-friendly
- Transparent Acrylic Side Panel Available
Specification
F-1
| TYPE | ATX Case |
| DRIVE BAYS - 5.25" | 1 |
| DRIVE BAYS - 3.5" | 2 |
| DRIVE BAYS - 2.5" | 2 |
| MOTHERBOARD | ATX / MICRO ATX |
| POWER SUPPLY | ATX PS/2 |
| EXPANSION SLOTS | 7 slots |
| STRUCTURE DIMENSIONS | 370x175x410mm |
| FAN CAPACITY - FRONT | 1x120mm |
| FAN CAPACITY - REAR | 1x80mm or 1x92mm |
| FAN CAPACITY - SIDE | 1x120mm |
| MAX. CPU COOLER HEIGHT | 145mm |
| MAX. GRAPHICS CARD LENGTH | 340mm |
F-2
| TYPE | ATX Case |
| DRIVE BAYS - 5.25" | 1 |
| DRIVE BAYS - 3.5" | 2 |
| DRIVE BAYS - 2.5" | 2 |
| MOTHERBOARD | ATX / MICRO ATX |
| POWER SUPPLY | ATX PS/2 |
| EXPANSION SLOTS | 7 slots |
| STRUCTURE DIMENSIONS | 325x175x410mm |
| FAN CAPACITY - FRONT | 1x120mm |
| FAN CAPACITY - REAR | 1x80mm or 1x92mm |
| FAN CAPACITY - SIDE | 1x120mm |
| MAX. CPU COOLER HEIGHT | 145mm |
| MAX. GRAPHICS CARD LENGTH | 295mm |
