F SERIES

  • black

Feature

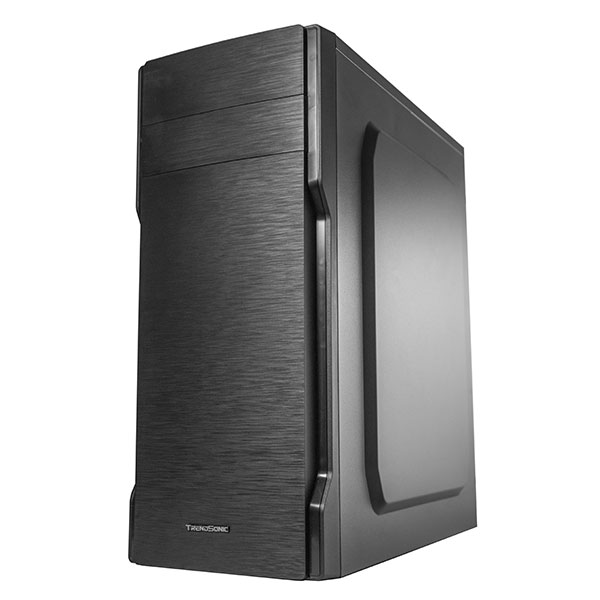

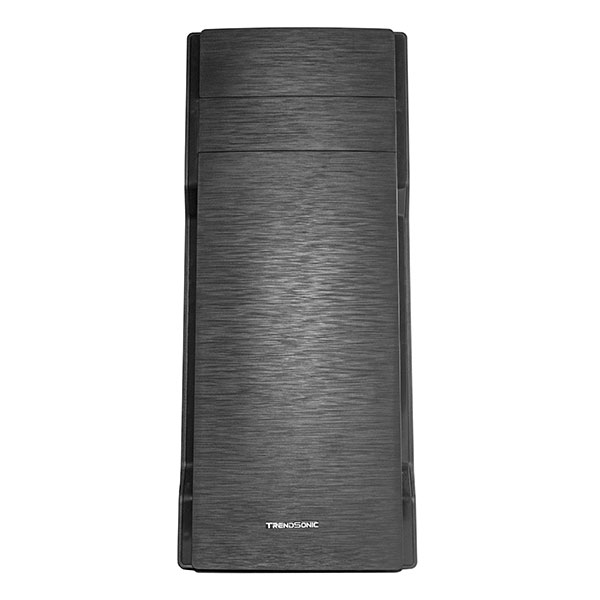

  • Simple and neat design
  • Aluminum alike surface presents high quality
  • Piano-finished strips for decoration

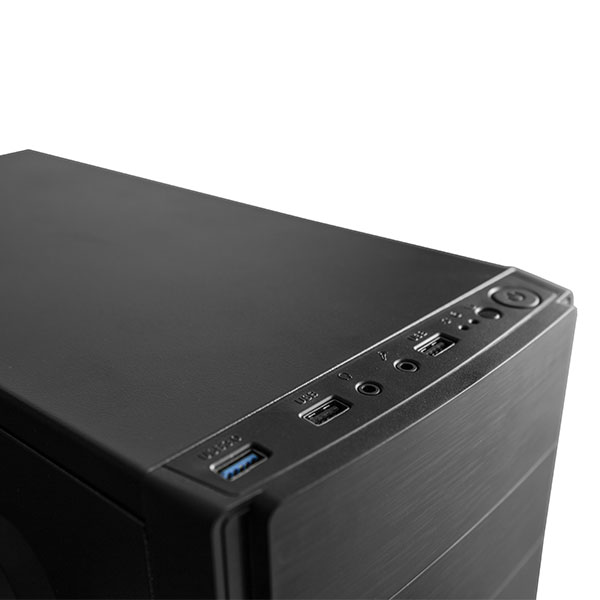

  • Top control panel with 3xUSB + HD audio for user-friendly
  • Super speed USB 3.0 is ready for option

Specification

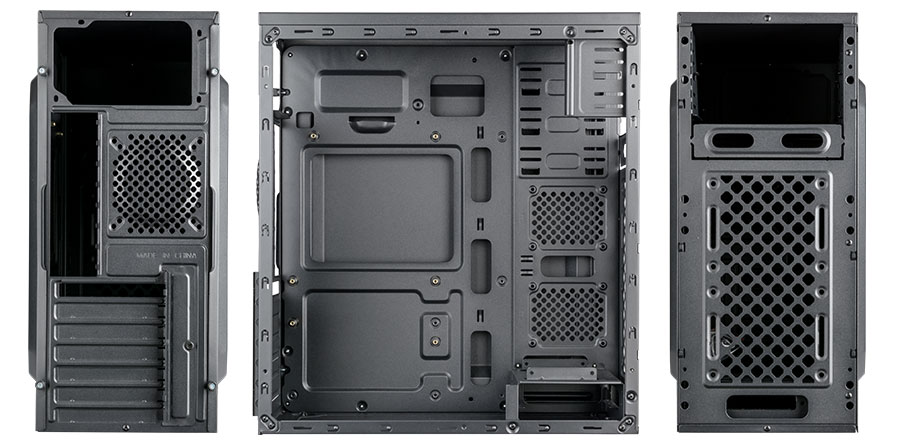

F-1 (370mm length)

Type ATX Case
Drive Space : 5.25" 1
Drive Space : 3.5" 2
Drive Space : 2.5" 2
Main Board ATX
Power Supply PS2
Expansion Slot 7 slots
Structure Dimension 370x175x410mm
CASE DIMENSION 400x175x420mm
Fan Capacity Front 1x12cm
Fan Capacity Rear 1x8 or 9cm
Fan Capacity Side 1x12cm
Measurement 1420PCS / 40'HQ
Support VGA Card Length 340mm
Support CPU Cooler 145mm
Support M/B 305x244mm

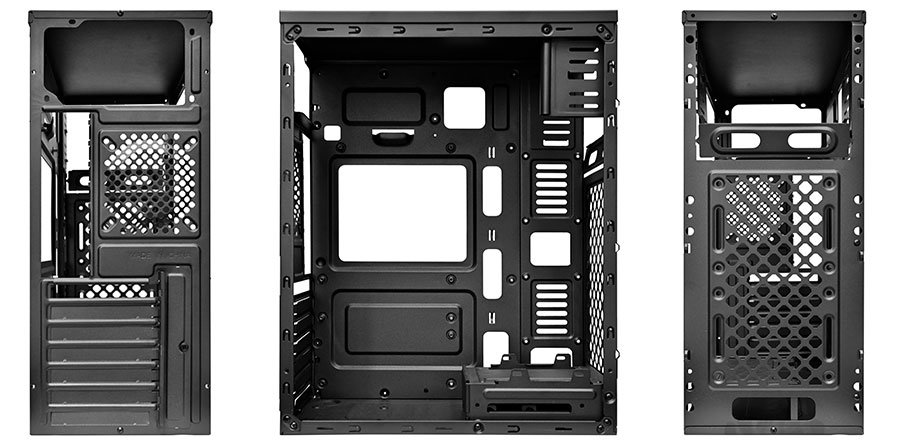

F-2 (325mm length)

Type ATX Case
Drive Space : 5.25" 1
Drive Space : 3.5" 2
Drive Space : 2.5" 2
Main Board ATX
Power Supply PS2
Expansion Slot 7 slots
Structure Dimension 325x175x410mm
CASE DIMENSION 355x175x420mm
Fan Capacity Front 1x12cm
Fan Capacity Rear 1x8 or 9cm
Fan Capacity Side 1x12cm
Measurement 1680PCS / 40'HQ
Support VGA Card Length 290mm
Support CPU Cooler 145mm
Support M/B 305x244mm
