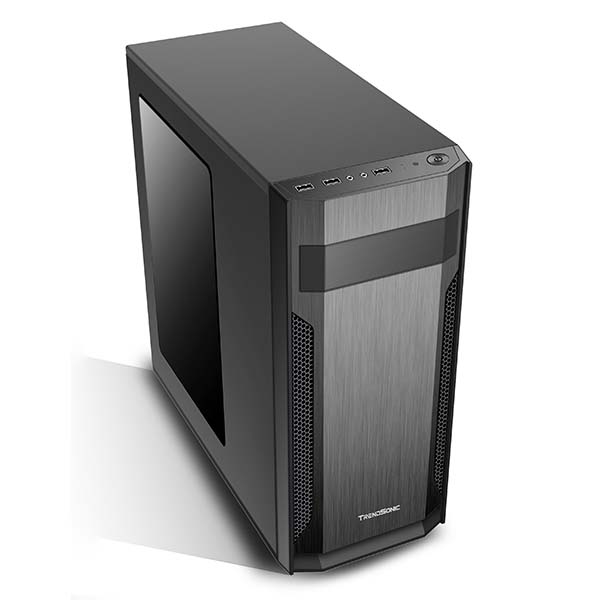

F SERIES

  • black

Feature

  • Simple and Noble Design
  • Aluminum Alike Surface Presents High Quality
  • Metal Mesh on Two Sides for the Best Ventilation
  • Top Control Panel with 3 * USB + HD Audio for User-friendly
  • Super Speed USB3.0 is Ready for Option

Specification

F-1

Type ATX Case
Drive Space : 5.25" 1
Drive Space : 3.5" 2
Drive Space : 2.5" 2
Main Board ATX
Power Supply PS2
Expansion Slot 7 slots
Structure Dimension 370x175x410mm
Fan Capacity Front 1x12cm
Fan Capacity Rear 1x8/9cm
Fan Capacity Side 1x12cm
Measurement 1420PCS / 40'HQ
Support VGA Card Length 340mm
Support CPU Cooler 145mm
Support M/B 305x244mm

F-2

Type ATX Case
Drive Space : 5.25" 1
Drive Space : 3.5" 2
Drive Space : 2.5" 2
Main Board ATX
Power Supply PS2
Expansion Slot 7 slots
Structure Dimension 325x175x410mm
Fan Capacity Front 1x12cm
Fan Capacity Rear 1x8/9cm
Fan Capacity Side 1x12cm
Measurement 1680PCS / 40'HQ
Support VGA Card Length 290mm
Support CPU Cooler 145mm
Support M/B 305x244mm
