ACKERMAN
AC29A
Feature
- Elegant Meteor-styled Mesh Design on Full Metal Front Panel
- Unblocked Straight Holes on Sides for Ventilation Enhancement
- Detachable Metal Front Panel and Anti-dust Filter Included
- Openable Tempered Glass Side Panel for User-friendly
- Two Vertical PCI Slots for Supporting Graphics Cards
- Super Speed+ USB 3.2 Type-C Available
Specification

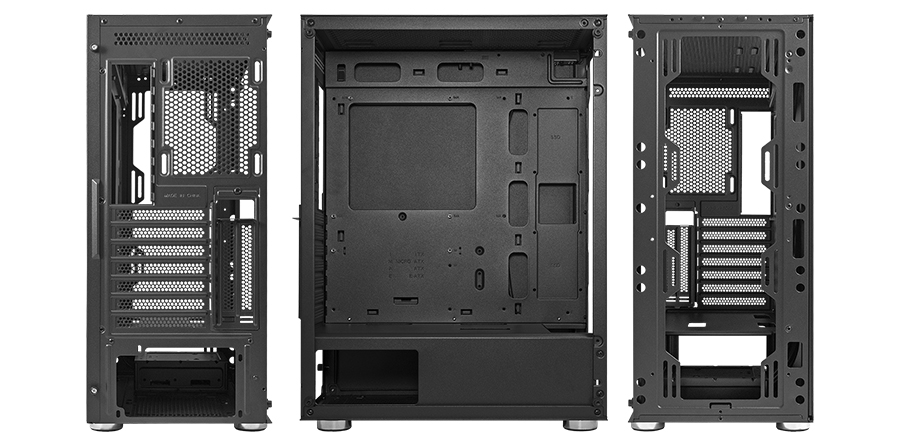

29A-1
| Type | ATX Case |
| STRUCTURE DIMENSIONS | 350x210x465mm |
| Drive Bays - 3.5" | 2 |
| Drive Bays - 2.5" | 2 |
| MOTHERBOARD | ATX / MICRO ATX |
| POWER SUPPLY | ATX PS/2, Bottom Mount |
| EXPANSION SLOTS | 7 slots + 2 vertical slots |
| MAX. CPU COOLER HEIGHT | 165mm |
| FAN CAPACITY - FRONT | 3x120mm or 3x140mm |
| FAN CAPACITY - Rear | 1x120mm |
| FAN CAPACITY - Top | 2x120mm or 2x140mm |
| FAN CAPACITY - Side | X |
| RADIATOR SUPPORT - FRONT | 240mm, 280mm, 360mm |
| RADIATOR SUPPORT - TOP | 240mm, 280mm |
| RADIATOR SUPPORT - SIDE | X |
| MAX. GRAPHICS CARD LENGTH | 320mm |

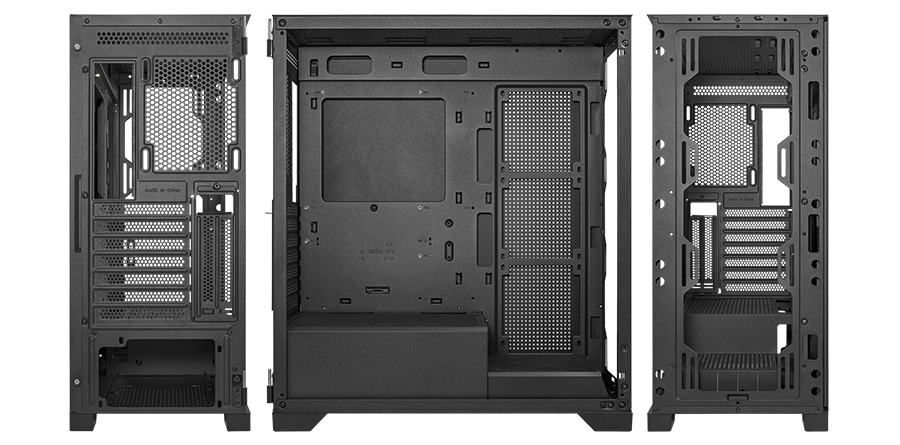

29A-2
| Type | ATX Case |
| STRUCTURE DIMENSIONS | 420x210x465mm |
| Drive Bays - 3.5" | 2 |
| Drive Bays - 2.5" | 2 |
| MOTHERBOARD | ATX / MICRO ATX |
| POWER SUPPLY | ATX PS/2, Bottom Mount |
| EXPANSION SLOTS | 7 slots + 2 vertical slots |
| MAX. CPU COOLER HEIGHT | 165mm |
| FAN CAPACITY - FRONT | 3x120mm or 3x140mm |
| FAN CAPACITY - Rear | 1x120mm |
| FAN CAPACITY - Top | 3x120mm or 2x140mm |
| FAN CAPACITY - Side | 3x120mm |
| RADIATOR SUPPORT - FRONT | 240mm, 280mm, 360mm |
| RADIATOR SUPPORT - TOP | 240mm, 280mm, 360mm |
| RADIATOR SUPPORT - SIDE | 240mm |
| MAX. GRAPHICS CARD LENGTH | 390mm |
