AMALTHEA
AM20A
Feature
- Metal Mesh or Glass Front Panel Available for Option
- Extraordinary Cooling Ability with Maximum 6 Fans and 360mm Liquid Cooler Mountable
- Individual LED Button for Switching RGB Color
- 2 Vertical PCI Slots for Graphics Card
- USB Control Panel and Power Button on Top for User-friendly
- Top / Bottom Anti-dust Mesh Cover Included
Introduction
Specification

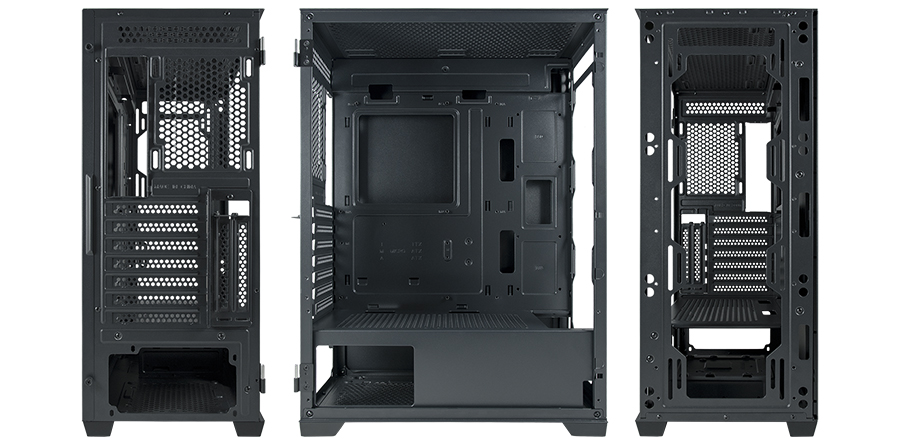

20A-1
| Type | ATX Case |
| Structure Dimensions | 350x205x470mm |
| DRIVE BAYS - 3.5" | 2 |
| DRIVE BAYS - 2.5" | 2 |
| MOTHERBOARD | ATX / MICRO ATX |
| POWER SUPPLY | ATX PS/2, Bottom Mount |
| EXPANSION SLOTS | 7 slots + 2 vertical slots |
| MAX. CPU COOLER HEIGHT | 160mm |
| FAN CAPACITY - FRONT | 3x120mm or 3x140mm |
| FAN CAPACITY - Rear | 1x120mm |
| FAN CAPACITY - Top | 2x120mm or 2x140mm |
| FAN CAPACITY - Side | X |
| RADIATOR SUPPORT - FRONT | 240mm, 280mm, 360mm |
| RADIATOR SUPPORT - Top | 240mm, 280mm |
| RADIATOR SUPPORT - Side | 240mm, 280mm |
| MAX. GRAPHICS CARD LENGTH | 330mm |

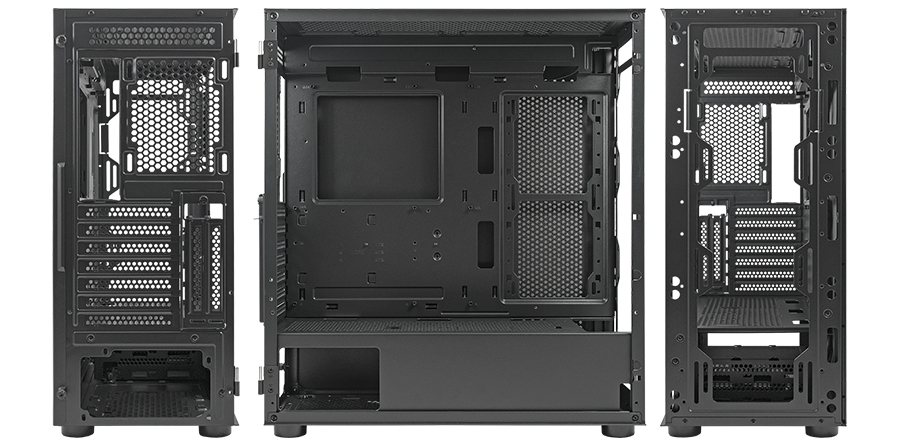

20A-2
| Type | ATX Case |
| Structure Dimensions | 430x205x470mm |
| DRIVE BAYS - 3.5" | 3 |
| DRIVE BAYS - 2.5" | 1 |
| MOTHERBOARD | E-ATX / ATX / MICRO ATX |
| POWER SUPPLY | ATX PS/2, Bottom Mount |
| EXPANSION SLOTS | 7 slots + 2 vertical slots |
| MAX. CPU COOLER HEIGHT | 160mm |
| FAN CAPACITY - FRONT | 3x120mm or 3x140mm |
| FAN CAPACITY - Rear | 1x120mm |
| FAN CAPACITY - Top | 3x120mm or 2x140mm |
| FAN CAPACITY - Side | 2x120mm |
| RADIATOR SUPPORT - FRONT | 240mm, 280mm, 360mm |
| RADIATOR SUPPORT - Top | 240mm, 280mm, 360mm |
| RADIATOR SUPPORT - Side | 240mm |
| MAX. GRAPHICS CARD LENGTH | 400mm |
