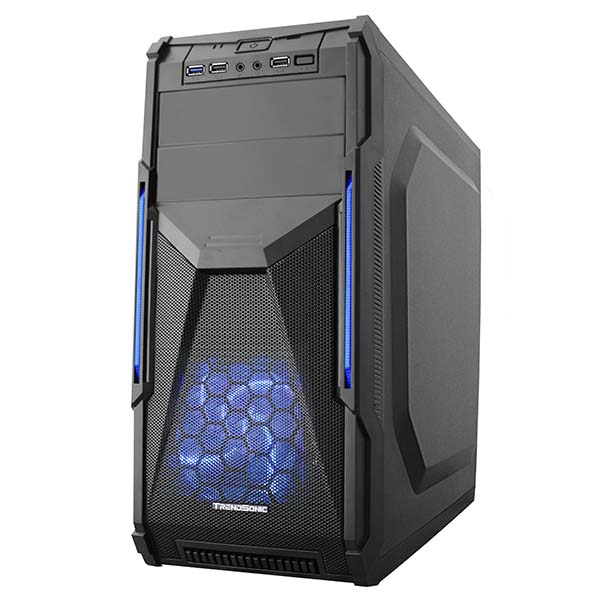

CONQUEROR

CON02A

  • blue

Feature

  • Front Panel with Metal Mesh Design for the Best Ventilation
  • Two Transparent Strips with Blue / Red LED on Two Sides
  • Control Panel with 4 USB Ports and Power Button on Top for User-friendly
  • Super Speed USB3.0 is Ready for Option
  • 3 Length Structures Available

Specification

02A-1

Type ATX Case
Drive Bays - 5.25" 1
Drive Bays - 3.5" 2
Drive Bays - 2.5" 1
Motherboard ATX / MICRO ATX
Power Supply ATX PS/2
Expansion Slots 7 slots
Structure Dimensions 320x175x405mm
Fan Capacity - Front 2x120mm
Fan Capacity - Rear 1x80mm
Fan Capacity - Side N/A
Max. CPU Cooler Height 145mm
Max. Graphics Card Length 290mm

02A-2

Type ATX Case
Drive Bays - 5.25" 1
Drive Bays - 3.5" 2
Drive Bays - 2.5" 2
Motherboard ATX / MICRO ATX
Power Supply ATX PS/2
Expansion Slots 7 slots
Structure Dimensions 350x175x405mm
Fan Capacity - Front 1x120mm
Fan Capacity - Rear 1x80mm or 1x92mm
Fan Capacity - Side 1x120mm
Max. CPU Cooler Height 145mm
Max. Graphics Card Length 300mm

02A-3

Type ATX Case
Drive Bays - 5.25" 1
Drive Bays - 3.5" 5
Drive Bays - 2.5" 3
Motherboard ATX / MICRO ATX
Power Supply ATX PS/2
Expansion Slots 7 slots
Structure Dimensions 375x175x405mm
Fan Capacity - Front 1x120mm
Fan Capacity - Rear 1x80mm or 1x92mm
Fan Capacity - Side 1x120mm
Max. CPU Cooler Height 145mm
Max. Graphics Card Length 210mm
