Aegis

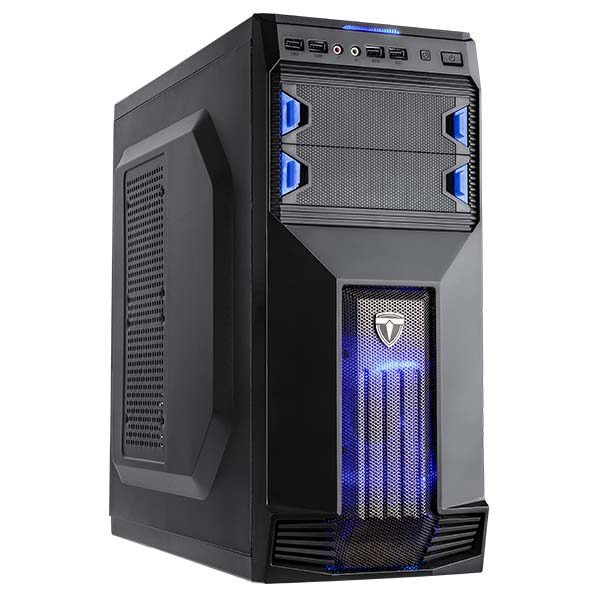

AE02A
Feature
- Front Panel with Metal Mesh Design for the Best Ventilation
- Drive Bay Cover with Smart Clips for Easy Assembly
- Control Panel with 4 USB Ports and Power Button on Top for User-friendly
- Super Speed USB3.0 is Ready for Option
- 3 Length Structures Available
Specification
02A-1
| Type | ATX Case |
| Drive Bays - 5.25" | 1 |
| Drive Bays - 3.5" | 2 |
| Drive Bays - 2.5" | 1 |
| Motherboard | ATX / MICRO ATX |
| Power Supply | ATX PS/2 |
| Expansion Slots | 7 slots |
| Structure Dimensions | 320x175x405mm |
| Fan Capacity - Front | 2x120mm |
| Fan Capacity - Rear | 1x80mm |
| Fan Capacity - Side | N/A |
| Max. CPU Cooler Height | 145mm |
| Max. Graphics Card Length | 290mm |
02A-2
| Type | ATX Case |
| Drive Bays - 5.25" | 1 |
| Drive Bays - 3.5" | 2 |
| Drive Bays - 2.5" | 2 |
| Motherboard | ATX / MICRO ATX |
| Power Supply | ATX PS/2 |
| Expansion Slots | 7 slots |
| Structure Dimensions | 350x175x405mm |
| Fan Capacity - Front | 1x120mm |
| Fan Capacity - Rear | 1x80mm or 1x92mm |
| Fan Capacity - Side | 1x120mm |
| Max. CPU Cooler Height | 145mm |
| Max. Graphics Card Length | 300mm |
02A-3
| Type | ATX Case |
| Drive Bays - 5.25" | 1 |
| Drive Bays - 3.5" | 5 |
| Drive Bays - 2.5" | 3 |
| Motherboard | ATX / MICRO ATX |
| Power Supply | ATX PS/2 |
| Expansion Slots | 7 slots |
| Structure Dimensions | 375x175x405mm |
| Fan Capacity - Front | 1x120mm |
| Fan Capacity - Rear | 1x80mm or 1x92mm |
| Fan Capacity - Side | 1x120mm |
| Max. CPU Cooler Height | 145mm |
| Max. Graphics Card Length | 210mm |
